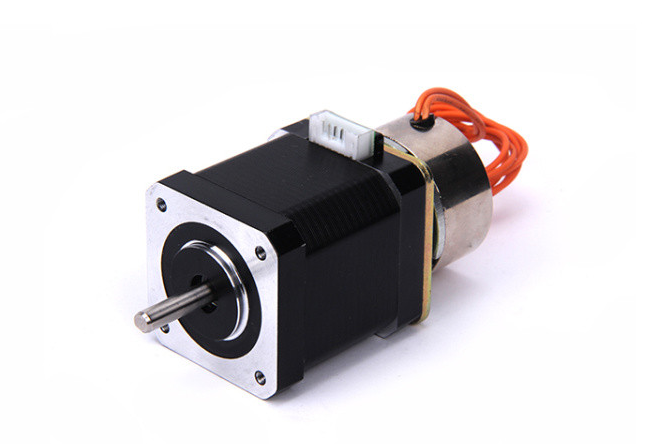

基本性能/Genaral Specification:
项目(Item) | 性能(Specifications) | |
步距角(Step Angle) | 1.8° | |
温 升(Temperature Rise) | 80℃max | |
环境温度（Ambient Temperature） | -20℃~+50℃ | |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC | |
电气强度(Dielectric Strength): | 500VAC for 1minute | |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) | |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) | |
MAX径向压力(Max. radial force) | 28N (20mm from the flange) | |
MAX轴向压力(Max. axial force) | 10N |
电机规格/Electrical Specifications:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm | Kg | |
JK42HS34-1334BK0.5 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.4 |
JK42HS40-1684BK0.5 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.46 |
JK42HS48-2504BK0.5 | 1.8 | 48 | 2.5 | 1.6 | 1.8 | 5.0 | 4 | 260 | 68 | 0.53 |
JK42HS60-1504BK0.5 | 1.8 | 60 | 1.5 | 4.0 | 6.0 | 7.5 | 4 | 280 | 102 | 0.68 |
以上仅为代表产品，特殊要求产品可根据客户要求订制。
Above only for representative products, products of special request can be made according to the customer request.

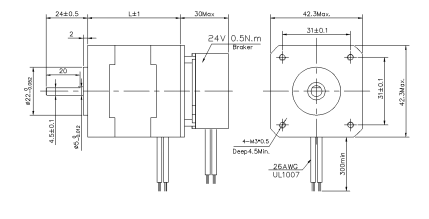

Dimensions:(电机外型图) Wiring Diagram:(接线图)
