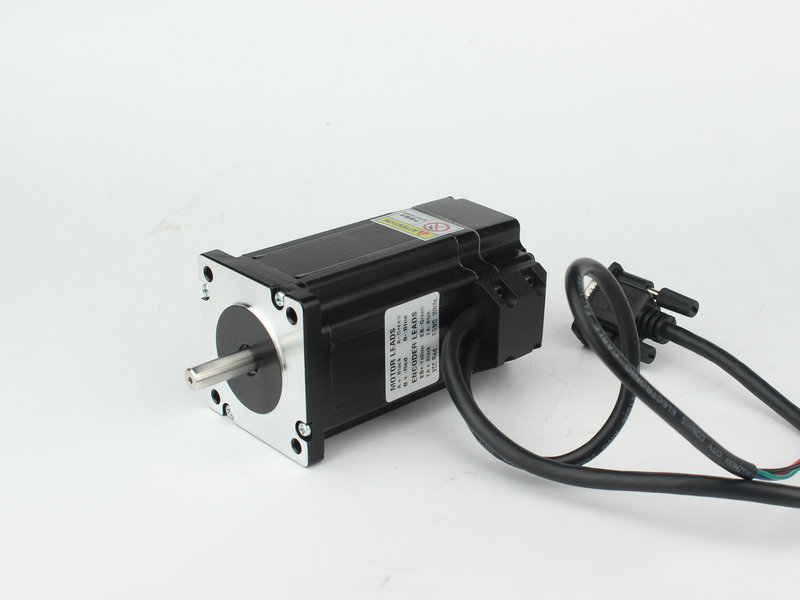

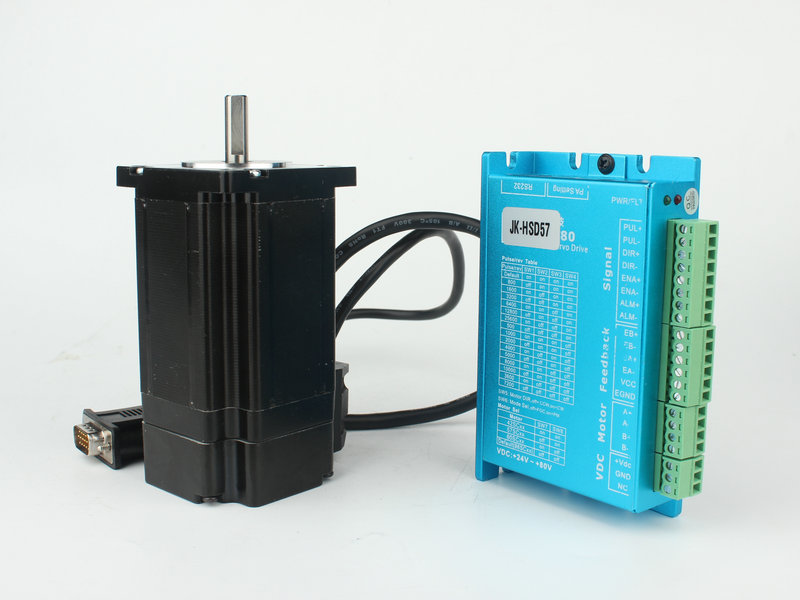

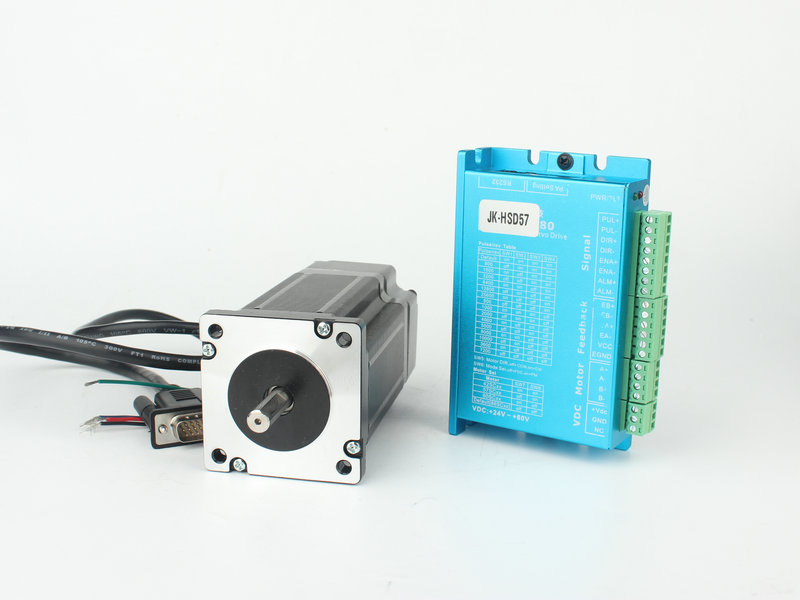

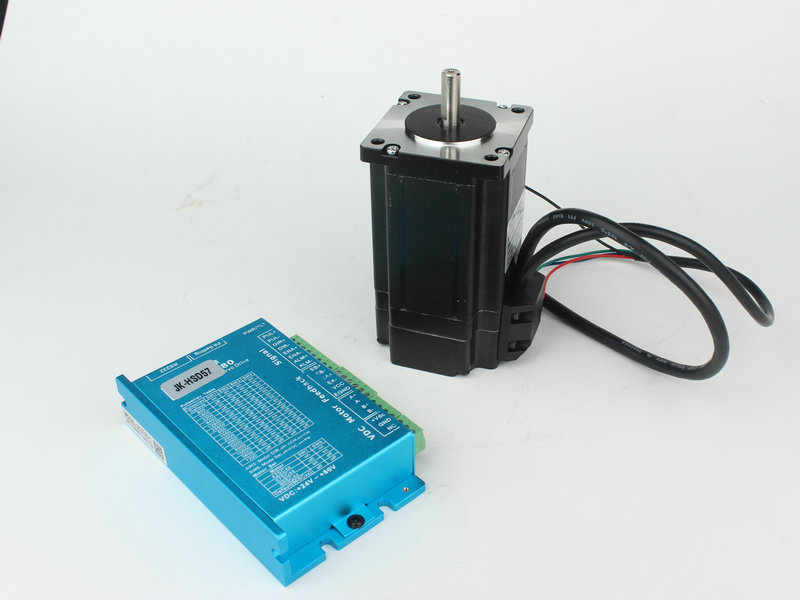

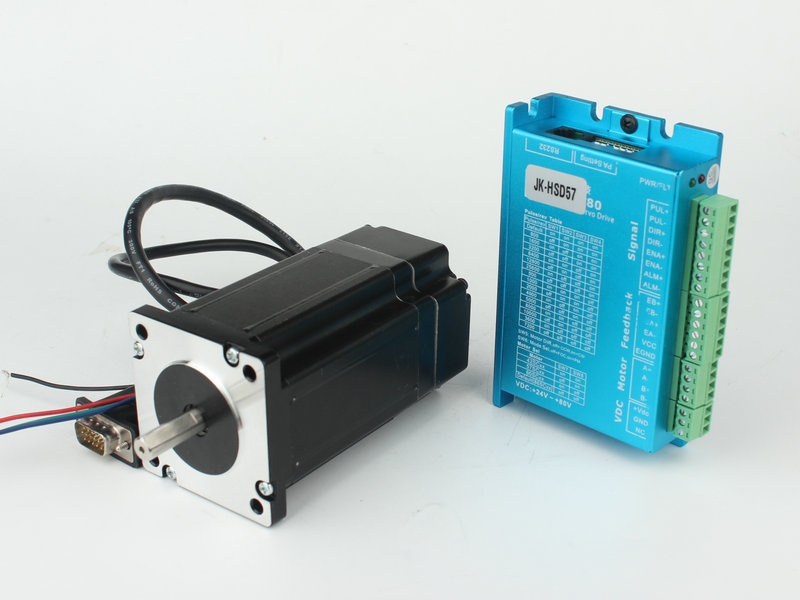

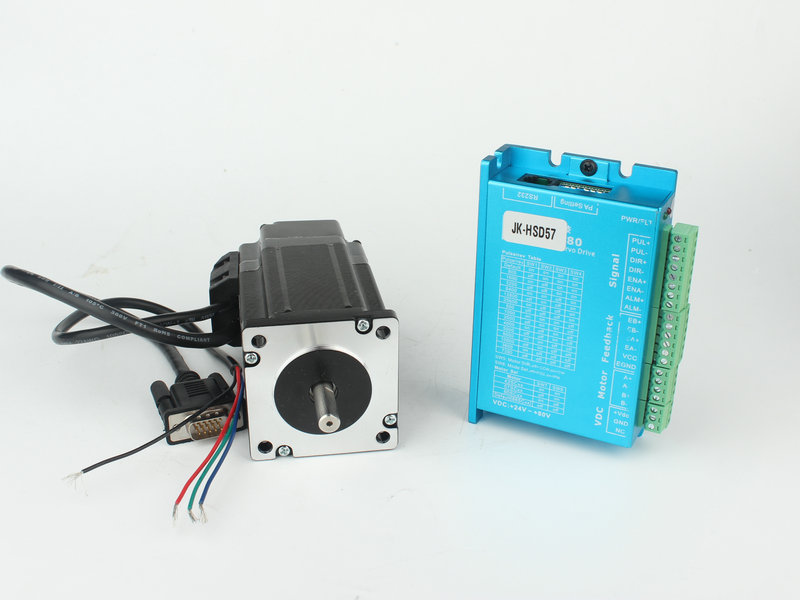

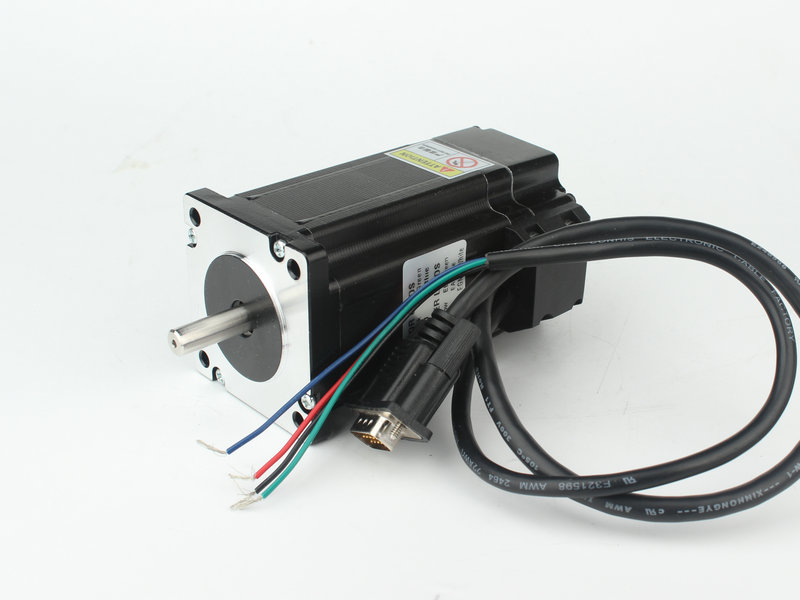

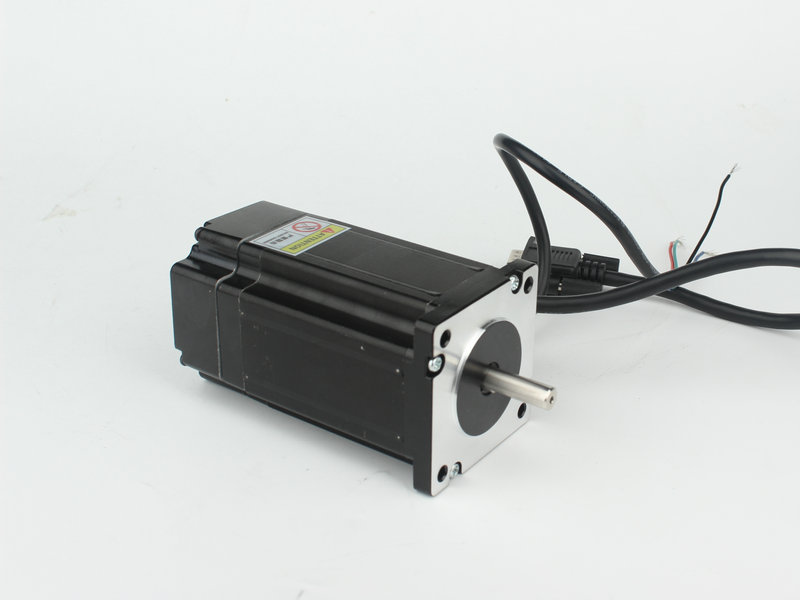

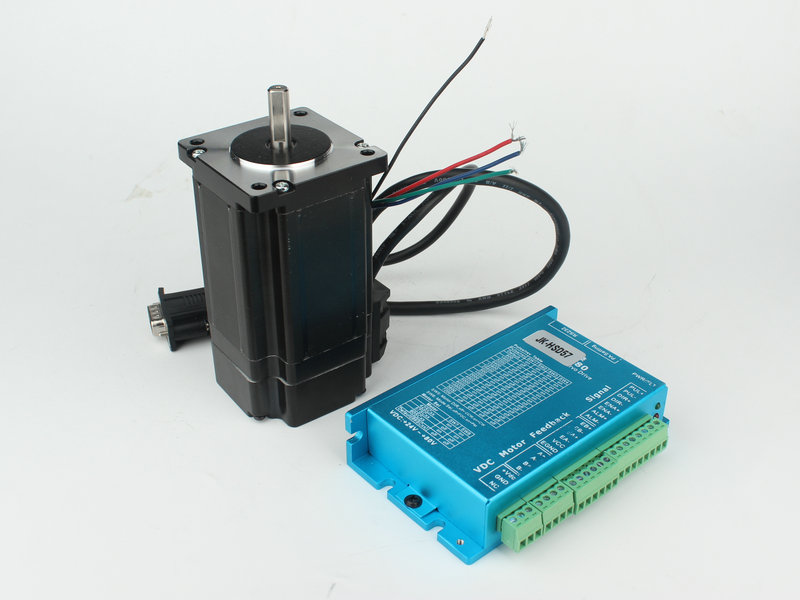

电机型号Model: NEMA23 二相简易伺服步进电机-JK57HS-ED
基本性能/General Specification:
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度（Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 500VAC for 1minute |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 75N (20mm from the flange) |
最大轴向压力(Max. axial force) | 15N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg | |
JK57HS41-4204BFED-0.35M | 1.8 | 41 | 4.2 | 0.3 | 0.7 | 0.55 | 4 | 250 | 150 | 0.65 |
JK57HS56-4204BFED-0.35M | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.1 | 4 | 350 | 280 | 0.98 |
JK57HS76-4204BFED-0.35M | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 1.8 | 4 | 600 | 440 | 1.1 |
JK57HS82-4204BFED-0.35M | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
JK57HS112-4204BFED-0.35M | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |
以上仅为代表产品，特殊产品可根据客户要求订制。
Above only for representative products, products of special request can be made according to the customer request.

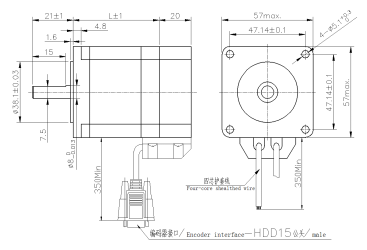

电机外型图/Dimensions:(单位/Unit=mm)

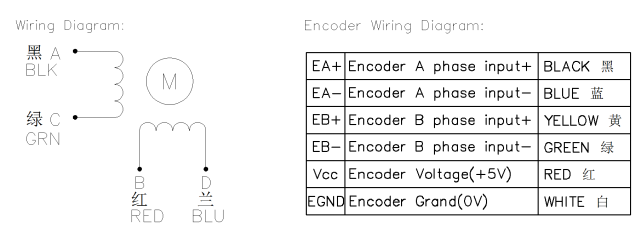

接线图/Wiring Diagram:
