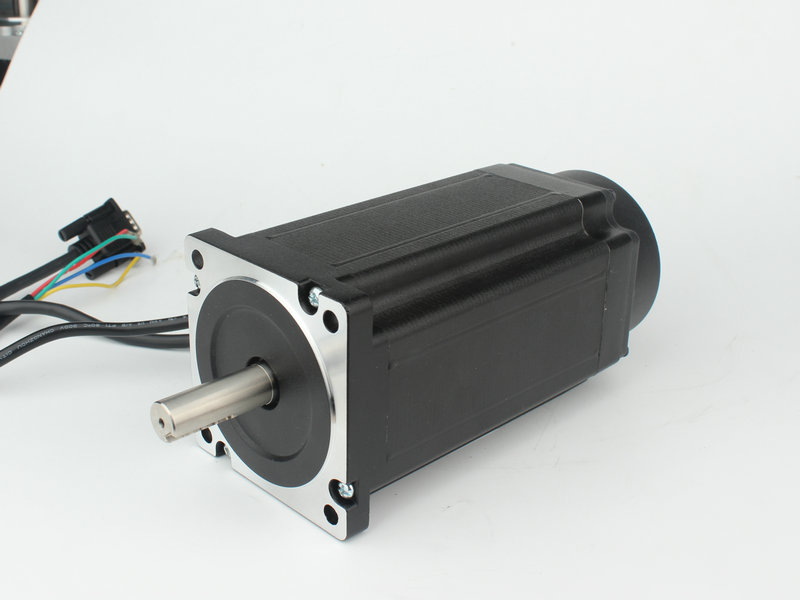

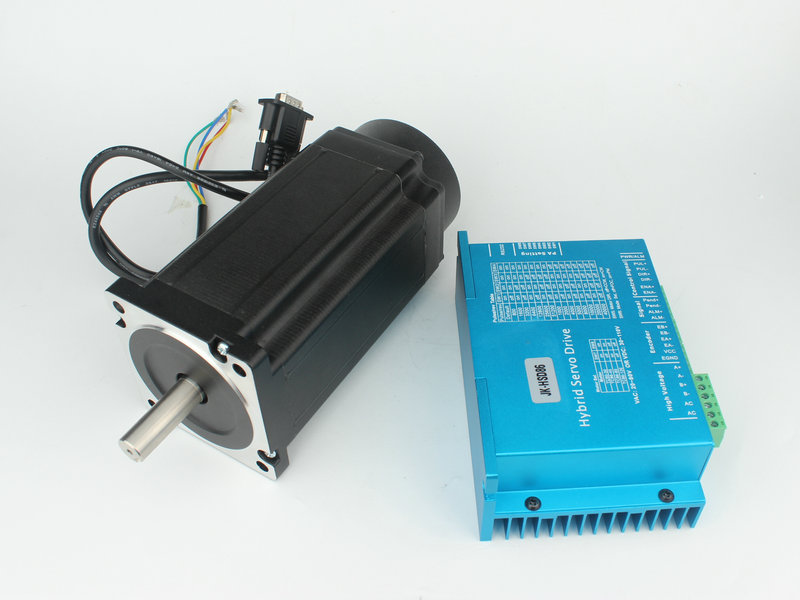

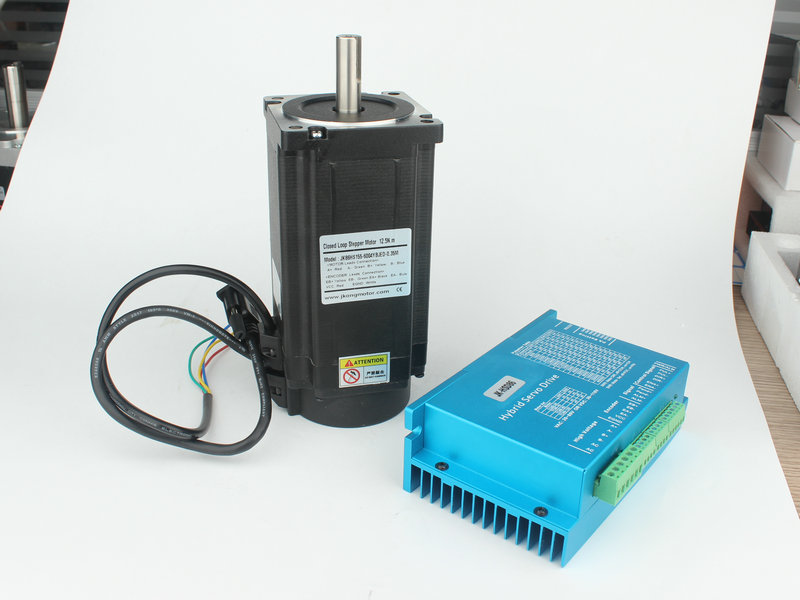

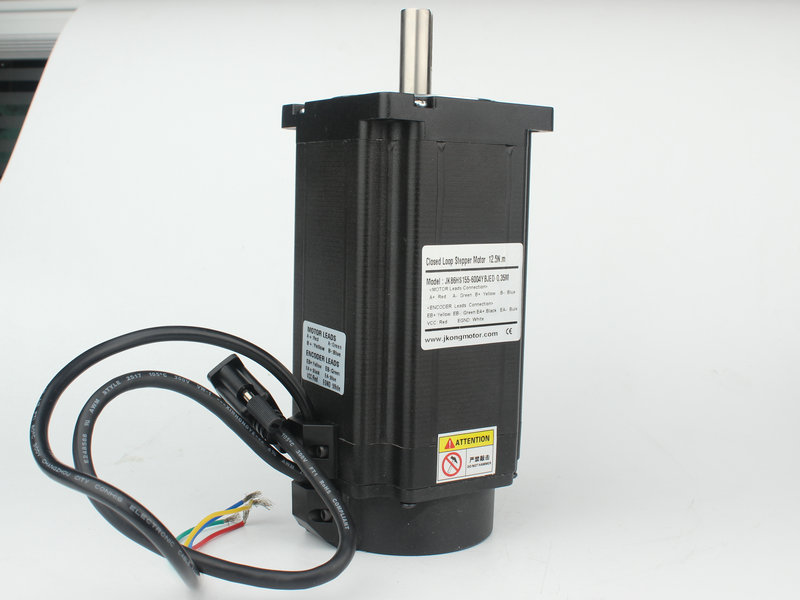

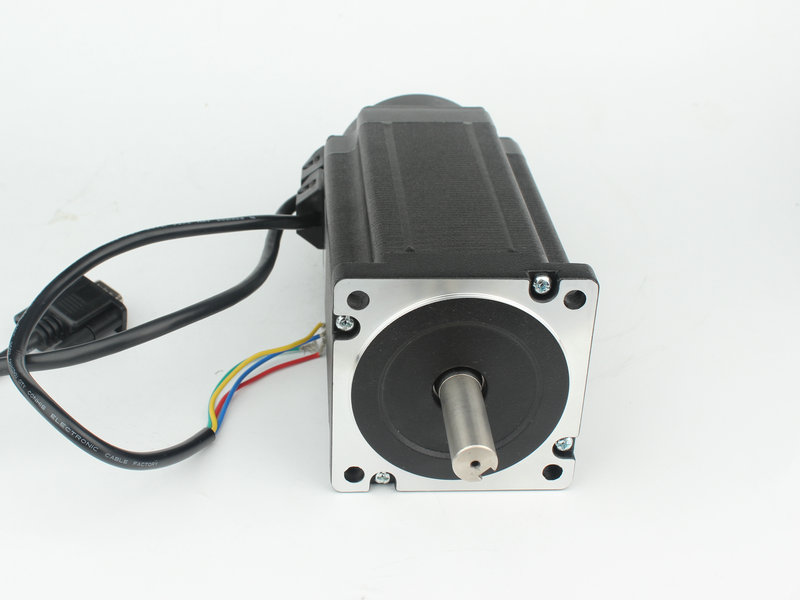

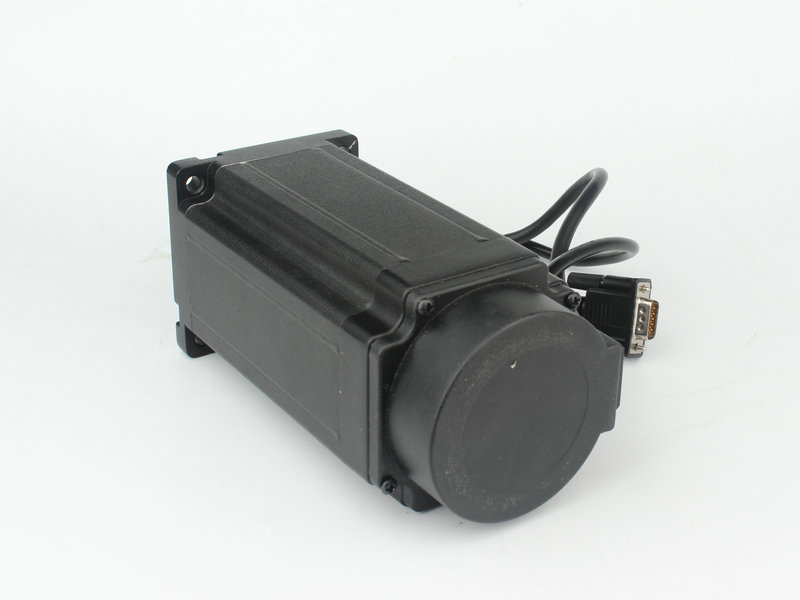

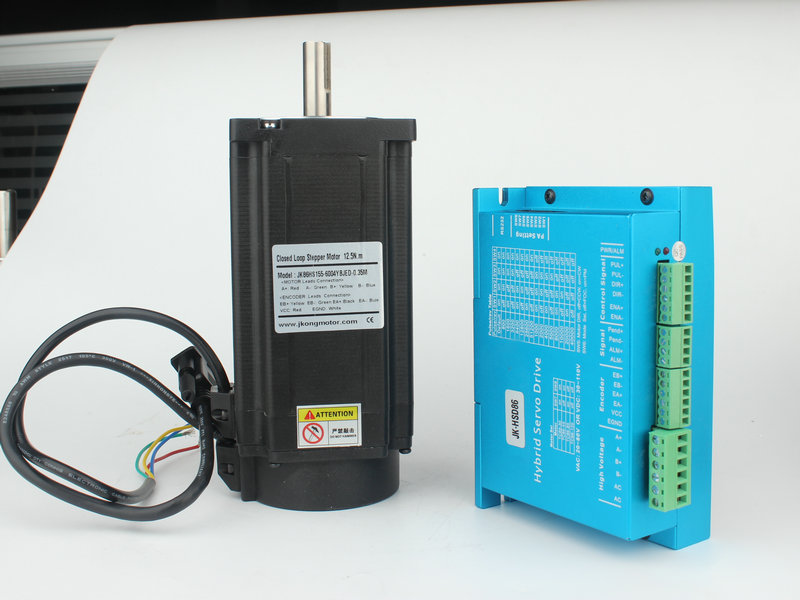

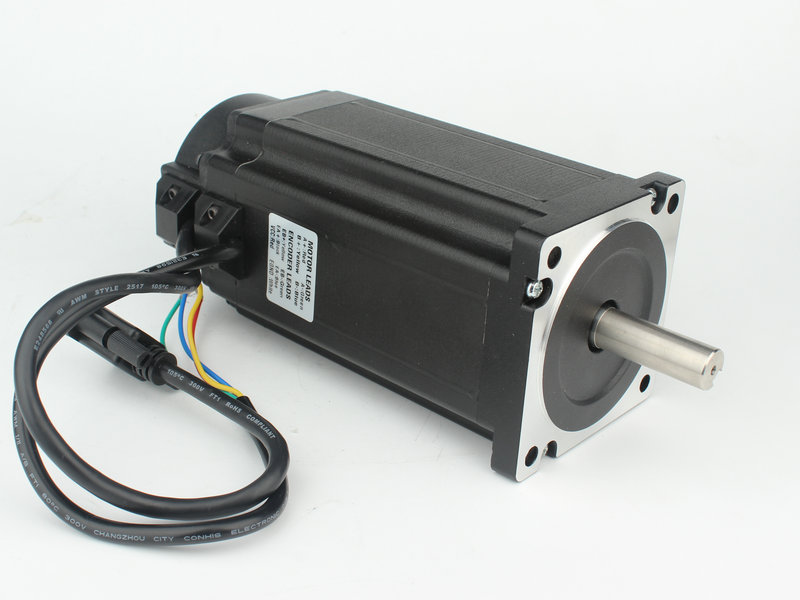

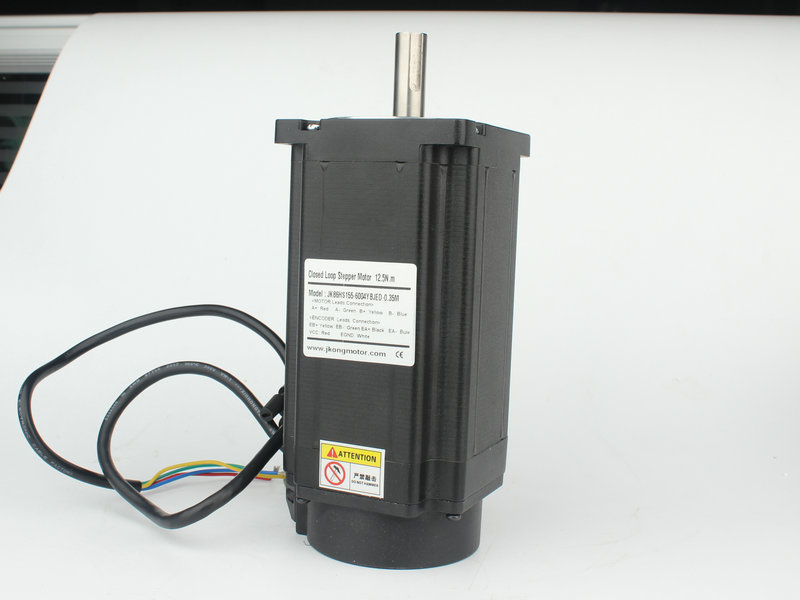

电机型号Model: NEMA34 两相简易伺服步进电机-JK86HS-ED
基本性能/Genaral Specification:
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度（Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 820VAC for 1s 3mA |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 220N (20mm from the flange) |
最大轴向压力(Max. axial force) | 60N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
JK86HS78-6004XBJED-0.35M | 1.8 | 78 | 6 | 0.27 | 2 | 4.5 | 4 | 1.2 | 1400 | 2.8 |
JK86HS115-6004YBJED-0.35M | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 | 4.3 |
JK86HS155-6004YBJED-0.35M | 1.8 | 155 | 6 | 0.44 | 3.8 | 12 | 4 | 3.6 | 4000 | 5.9 |
Above only for representative products, products of special request can be made according to the customer request.以上仅为代表产品，特殊产品可根据客户要求订制。
Dimensions:(电机外型图)
(Unit=mm)
Wiring Diagram:(接线图)

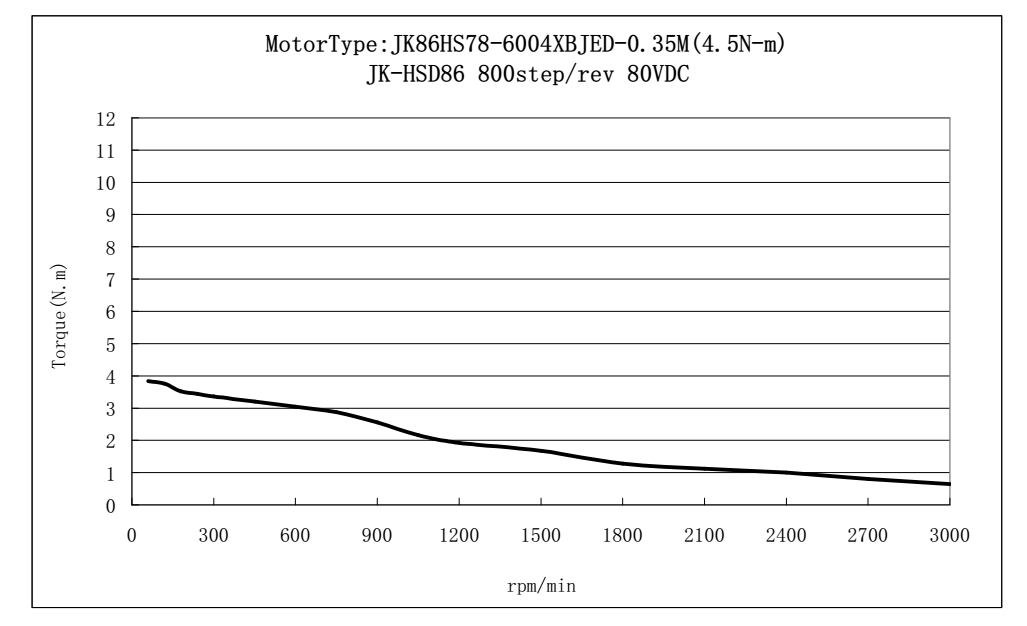

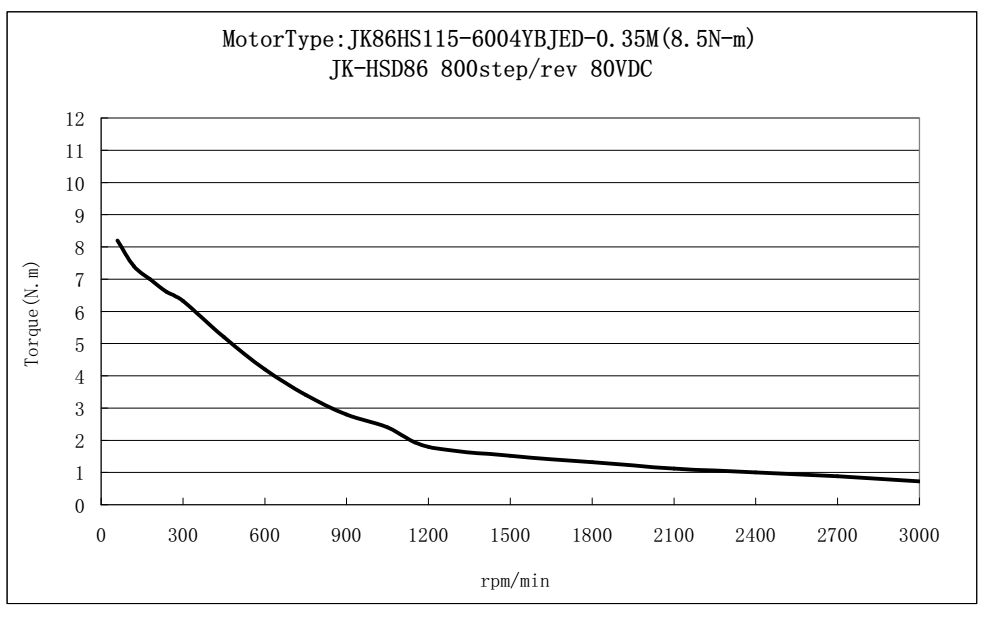

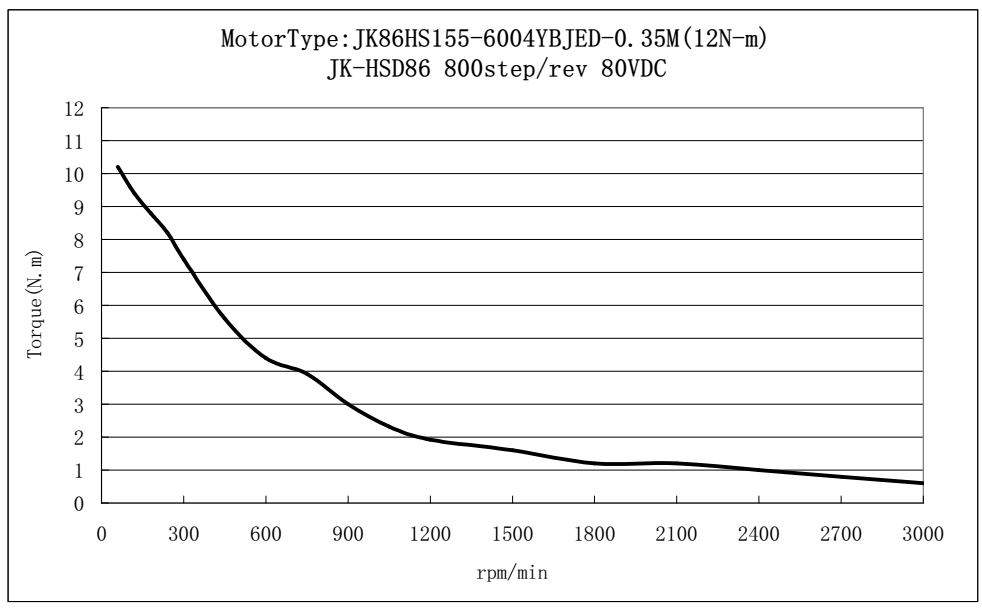

矩频特性曲线：
