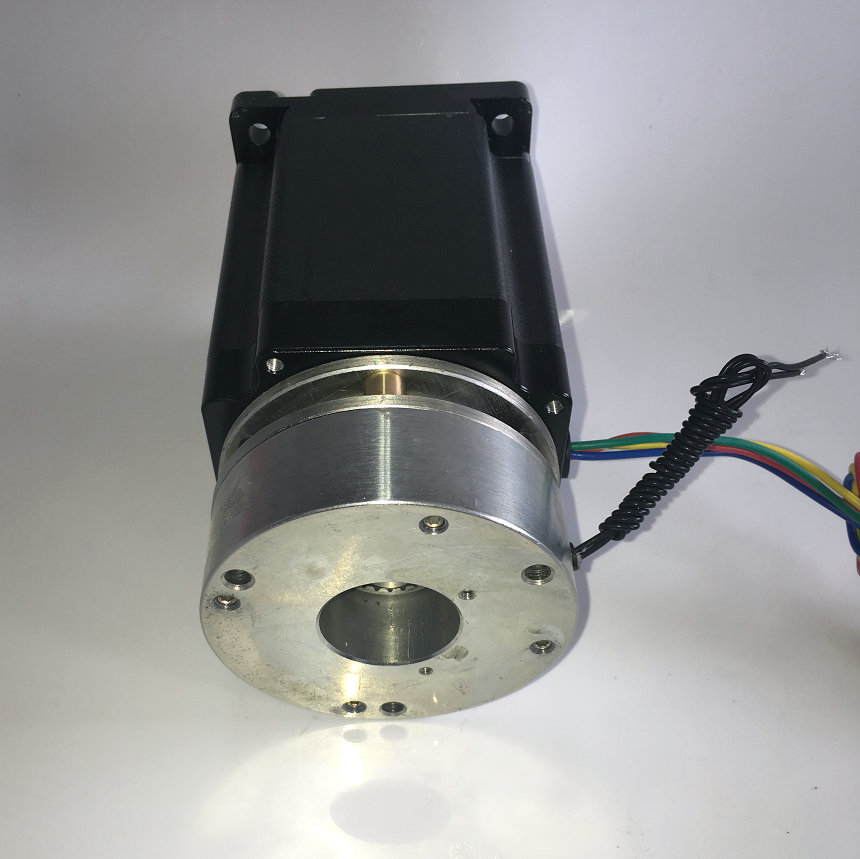

基本性能/Genaral Specification:
项目(Item) | 性能(Specifications) | |
步距角(Step Angle) | 1.8° | |
温 升(Temperature Rise) | 80℃max | |
环境温度（Ambient Temperature） | -20℃~+50℃ | |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC | |
电气强度(Dielectric Strength): | 820VAC for 1s 3mA | |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) | |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) | |
径向压力(Max. radial force) | 220N (20mm from the flange) | |
轴向压力(Max. axial force) | 60N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
JK86HS68-5904BK6 | 1.8 | 67 | 5.9 | 0.28 | 1.7 | 3.4 | 4 | 0.8 | 1000 | 1.7 |
JK86HS78-5504BK6 | 1.8 | 78 | 5.5 | 0.46 | 4 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
JK86HS97-4504BK6 | 1.8 | 97 | 4.5 | 0.66 | 3 | 5.8 | 4 | 1.7 | 2100 | 3.0 |
JK86HS100-6004BK6 | 1.8 | 100 | 6.0 | 0.36 | 2.8 | 7.0 | 4 | 1.9 | 2200 | 3.1 |
JK86HS115-4204BK6 | 1.8 | 115 | 4.2 | 1.2 | 14 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
JK86HS126-6004BK6 | 1.8 | 126 | 6.0 | 0.58 | 6.5 | 6.3 | 4 | 2.9 | 3200 | 4.5 |
JK86HS155-6004BK6 | 1.8 | 155 | 6.0 | 0.68 | 9.0 | 13 | 4 | 3.6 | 4000 | 5.4 |
以上仅为代表产品，特殊产品可根据客户要求订制。

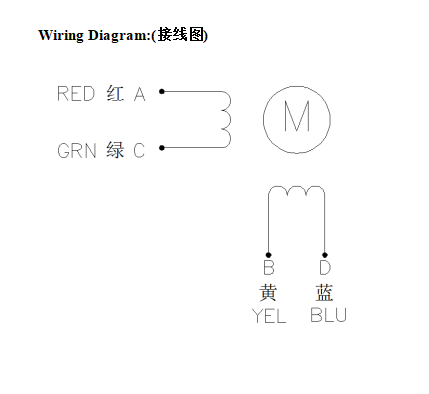

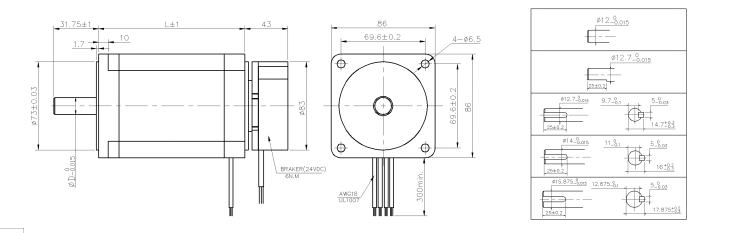

Dimensions:(电机外型图)
