1.8° 42HS两相混合式步进电机
基本性能/General Specification:
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度(Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 500VAC for 1minute |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 28N (20mm from the flange) |
最大轴向压力(Max. axial force) | 10N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 转子惯量 Rotor Inertia | 重量 Motor Weight |
( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm | Kg | |
JK28HS32-0424 | 1.8 | 32 | 0.4 | 11.9 | 6.7 | 600 | 4 | 9 | 0.11 |
JK28HS32-0504 | 1.8 | 32 | 0.5 | 11.4 | 7.4 | 600 | 4 | 9 | 0.11 |
JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
JK28HS51-1004 | 1.8 | 51 | 1.0 | 2.3 | 1.8 | 900 | 4 | 18 | 0.2 |
以上仅为代表产品，特殊产品可根据客户要求订制。
Above only for representative products, products of special request can be made according to the customer request.
丝杆规格/Screw rod Specification:
丝杆直径 Screw Diameter(mm) | 丝杆导程 Screw Lead(mm) | 丝杆螺距 Screw Pitch(mm) | 步长 Travel per step(mm) | 丝杆直径 Screw Diameter(mm) | 丝杆导程 Screw Lead(mm) | 丝杆螺距 Screw Pitch(mm) | 步长 Travel per step(mm) |
Tr3.5 | 1 | 1 | 0.005 | Tr6 | 2 | 1 | 0.01 |
0.6096 | 0.6096 | 0.003 | 4 | 1 | 0.02 | ||
2.4384 | 1.2192 | 0.0122 | 6 | 1 | 0.03 | ||
Tr5 | 1 | 1 | 0.005 | 12 | 2 | 0.06 | |
2 | 1 | 0.01 |

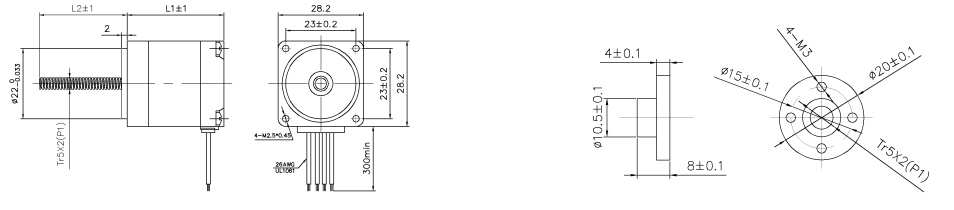

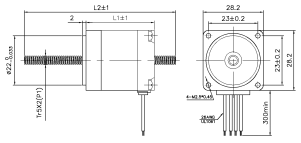

电机外型图/Dimensions:(单位/Unit=mm)

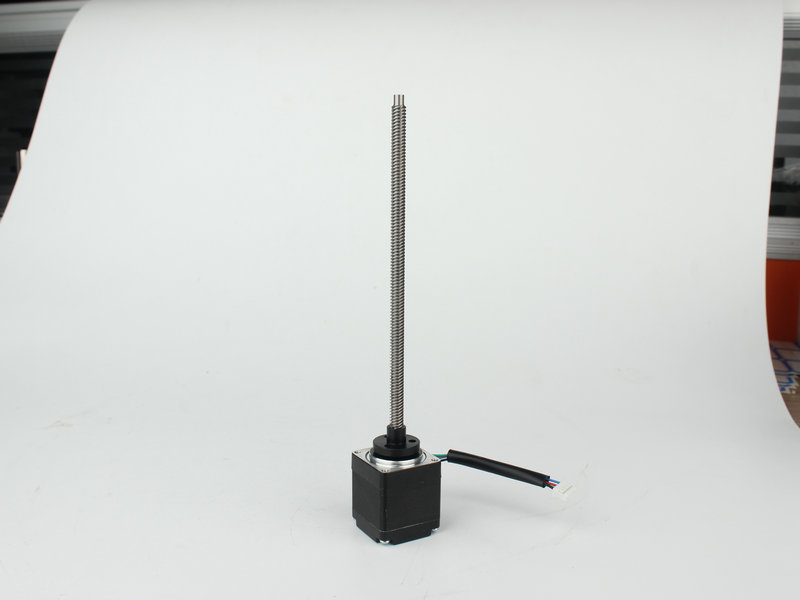

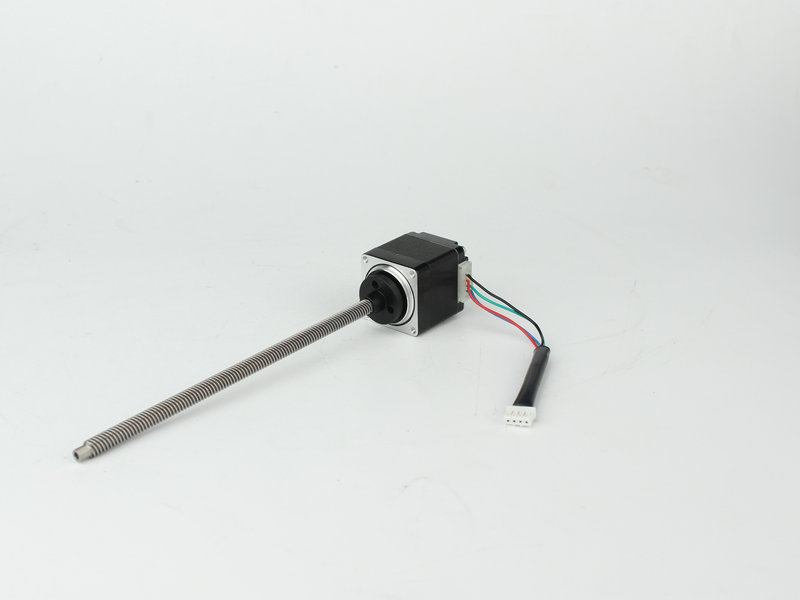

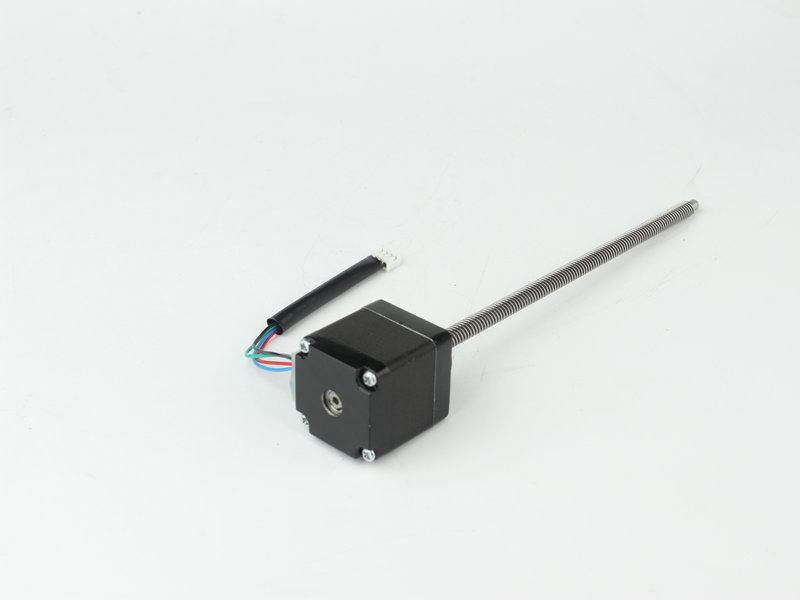

1、External Shaft motor 螺母/Nut: 1.POM螺母/POM Nut
2.铜螺母/Copper Nut

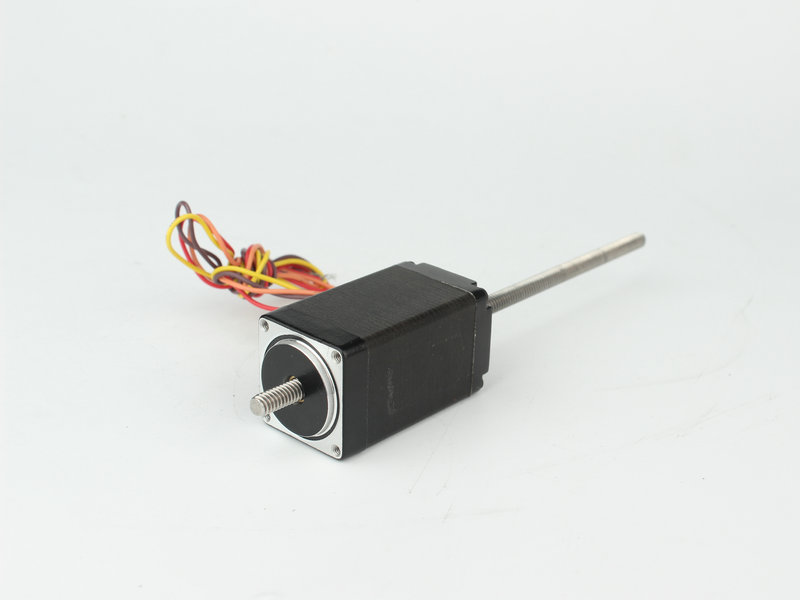

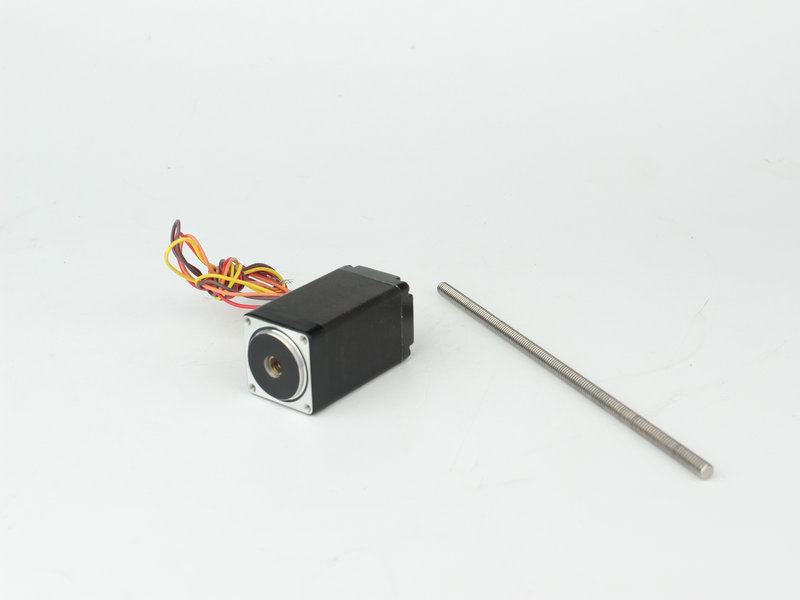

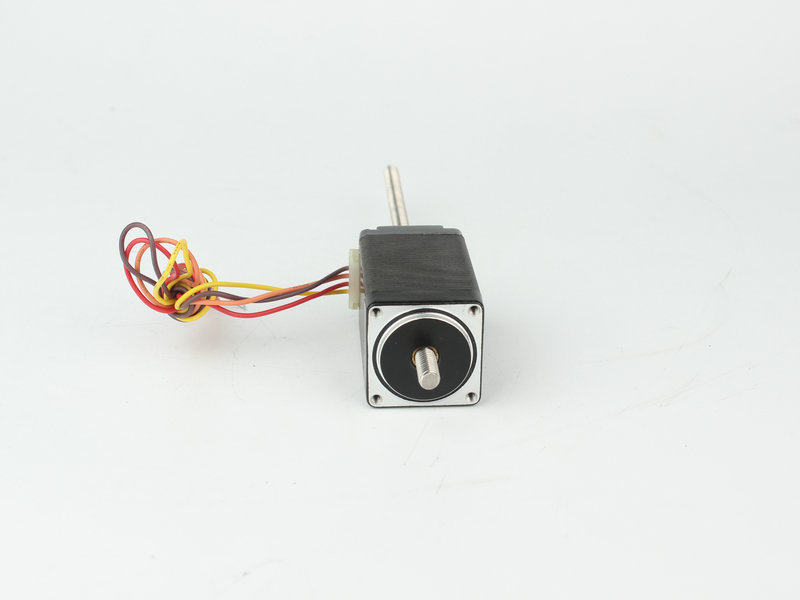

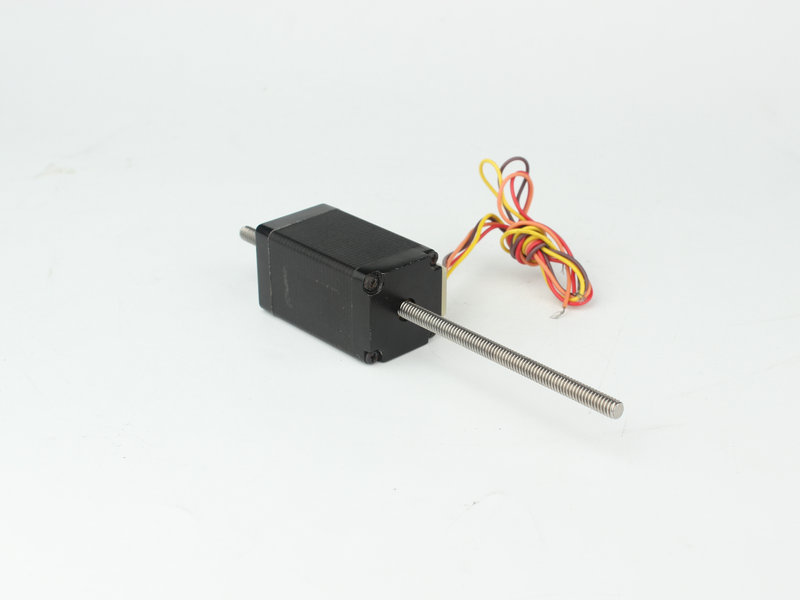

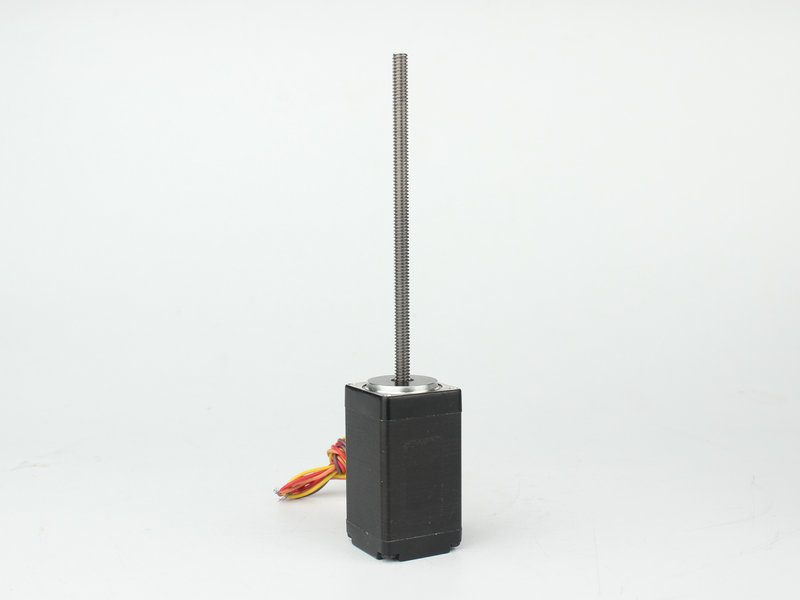

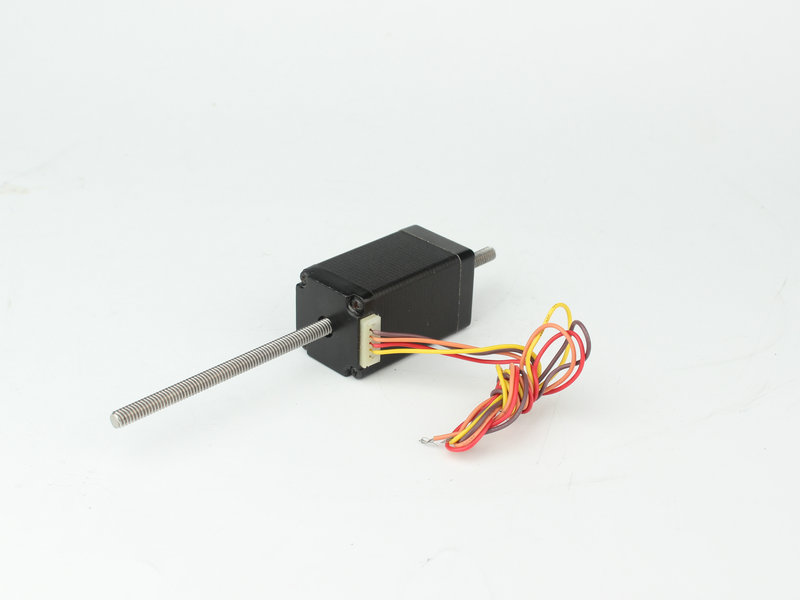

2、Non Captive motor
接线图/Wiring Diagram:
