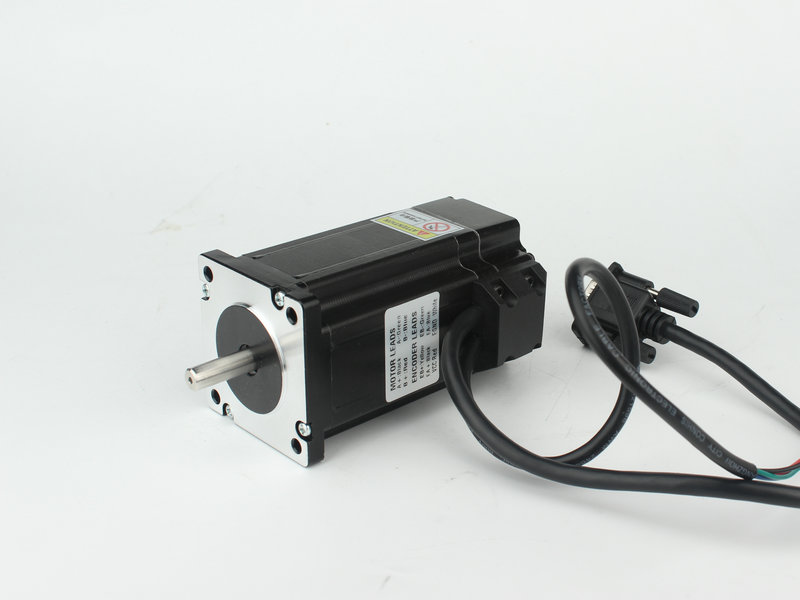

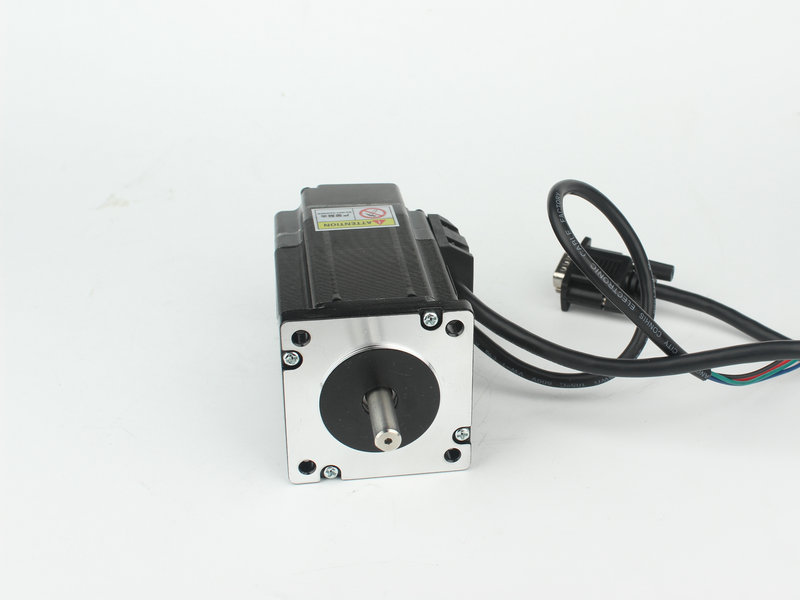

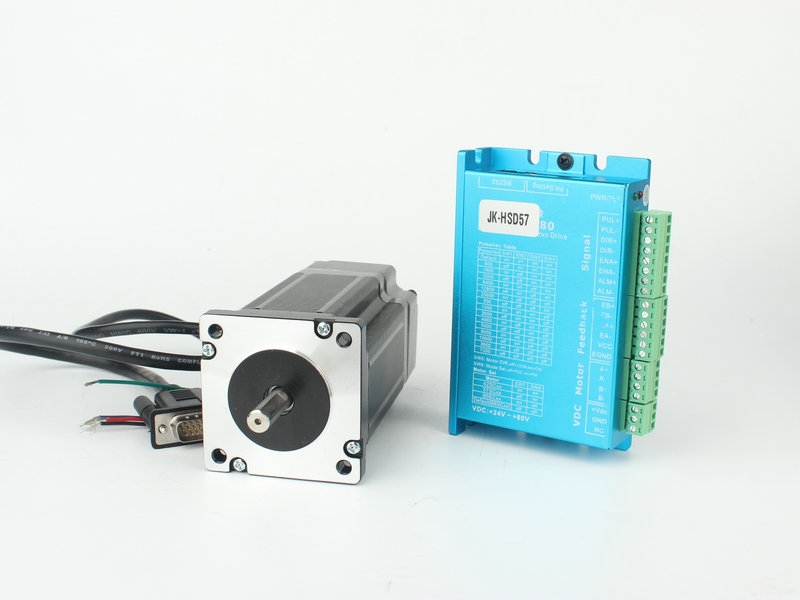

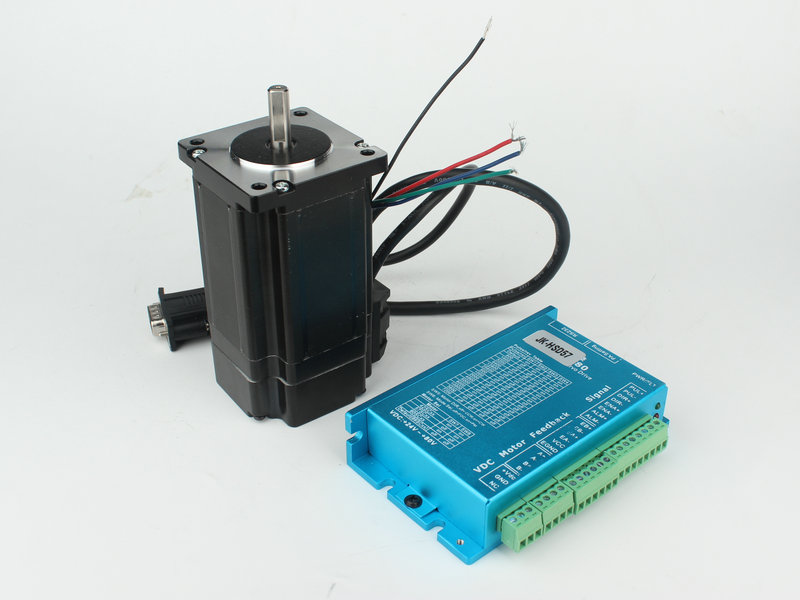

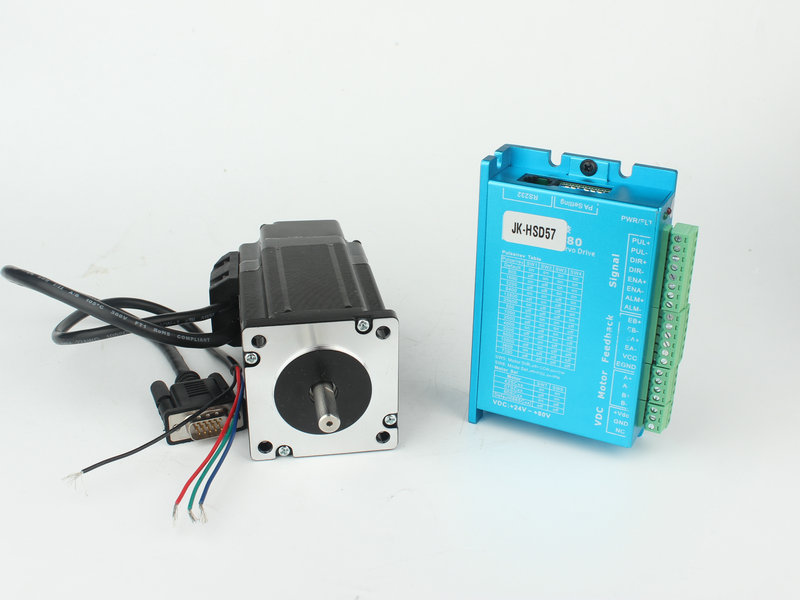

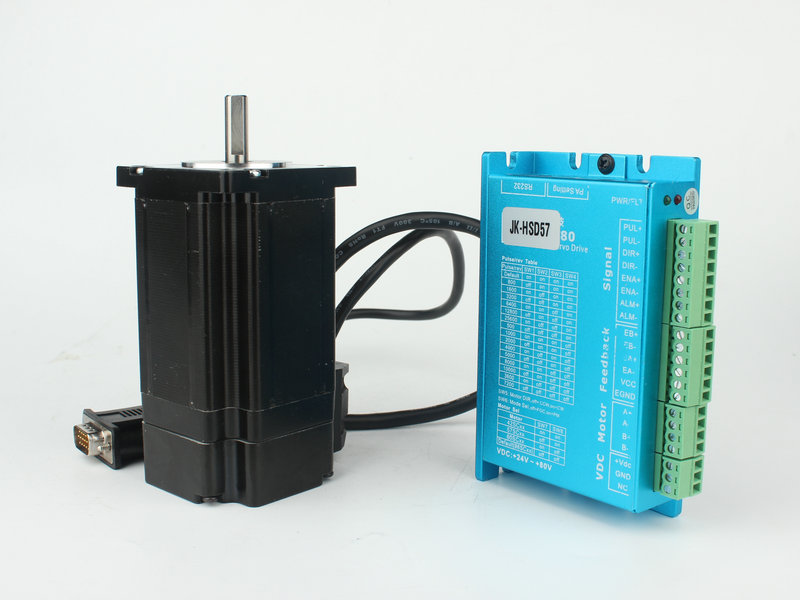

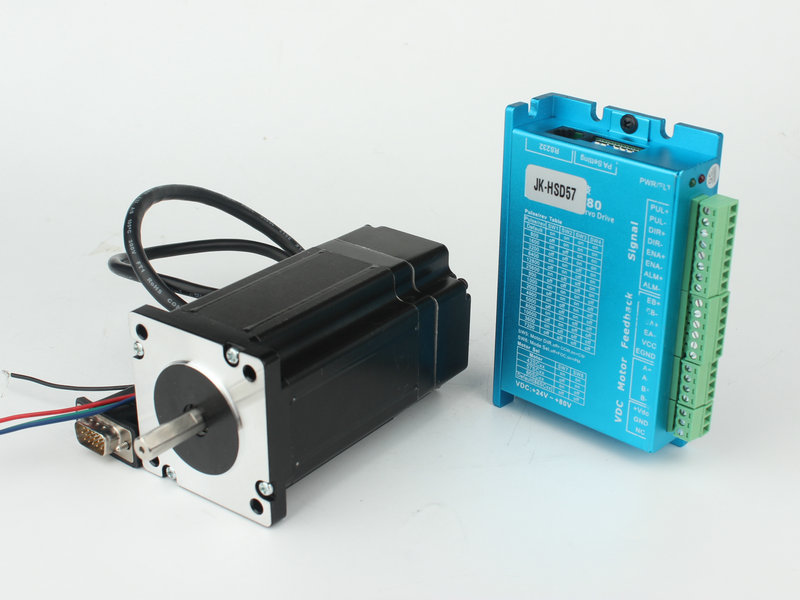

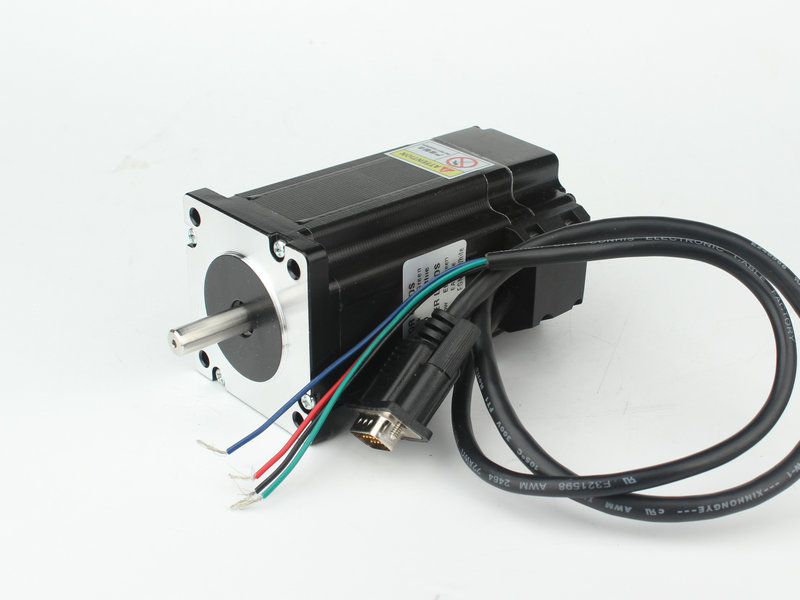

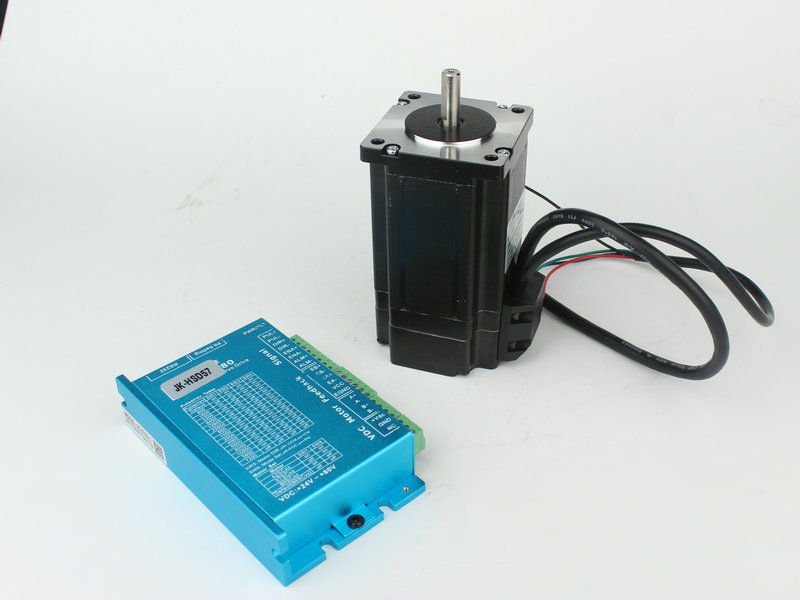

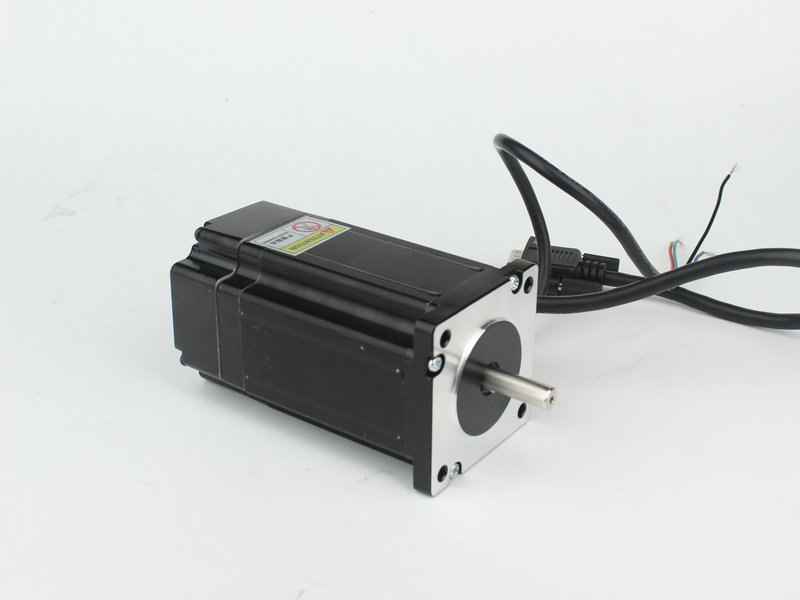

电机型号Model: NEMA24 二相简易伺服步进电机-JK60HS-ED
基本性能/Genaral Specification:
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度（Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 500VAC for 1s 3mA |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 75N (20mm from the flange) |
最大轴向压力(Max. axial force) | 15N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
JK60HS88-4004BFED-0.35M | 1.8 | 88 | 4.0 | 0.65 | 2.4 | 3.1 | 4 | 1000 | 840 | 1.4 |
JK60HS100-4004BFED-0.35M | 1.8 | 100 | 4.0 | 0.7 | 3.0 | 4.0 | 4 | 1100 | 980 | 2.0 |
以上仅为代表产品，特殊产品可根据客户要求订制。
Above only for representative products, products of special request can be made according to the customer request.

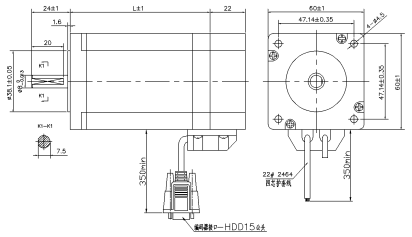

Dimensions:(电机外型图)
(Unit=mm)

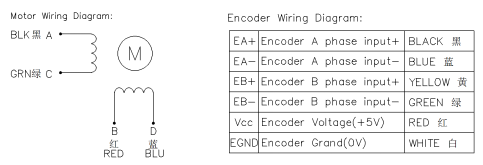

Wiring Diagram:(接线图)
