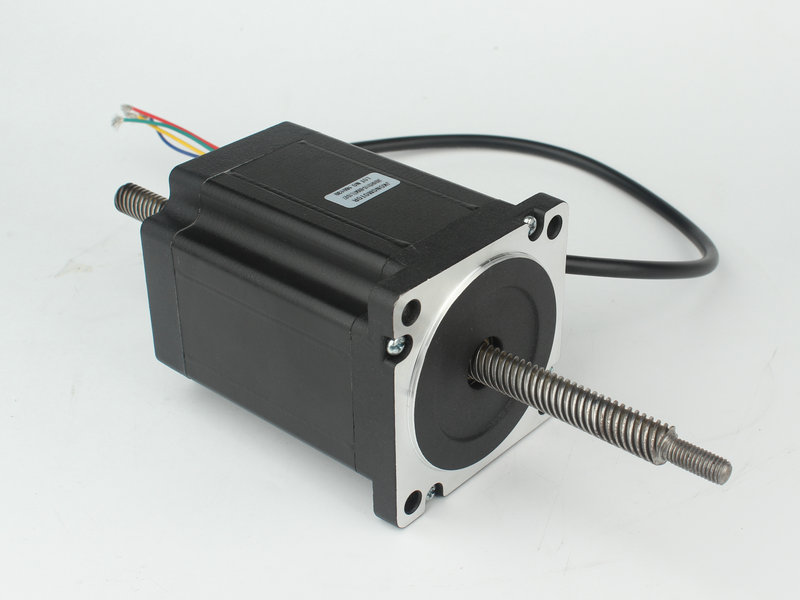

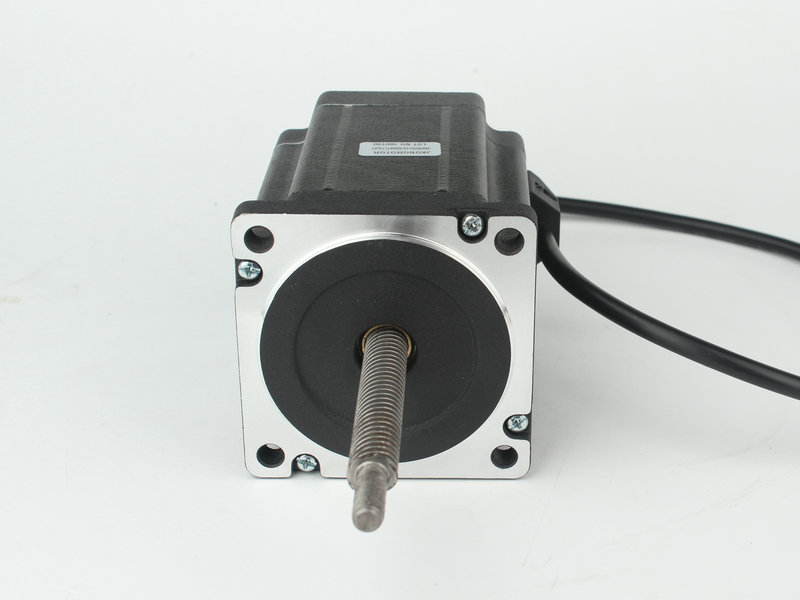

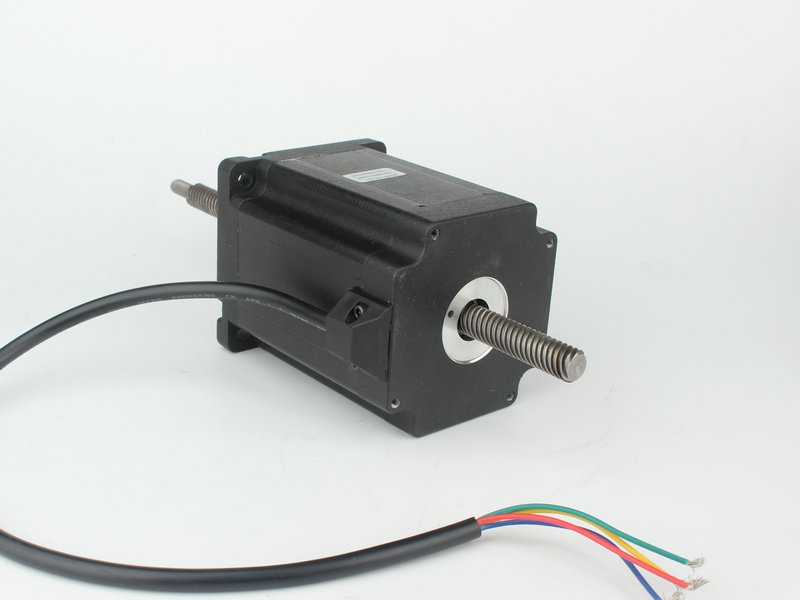

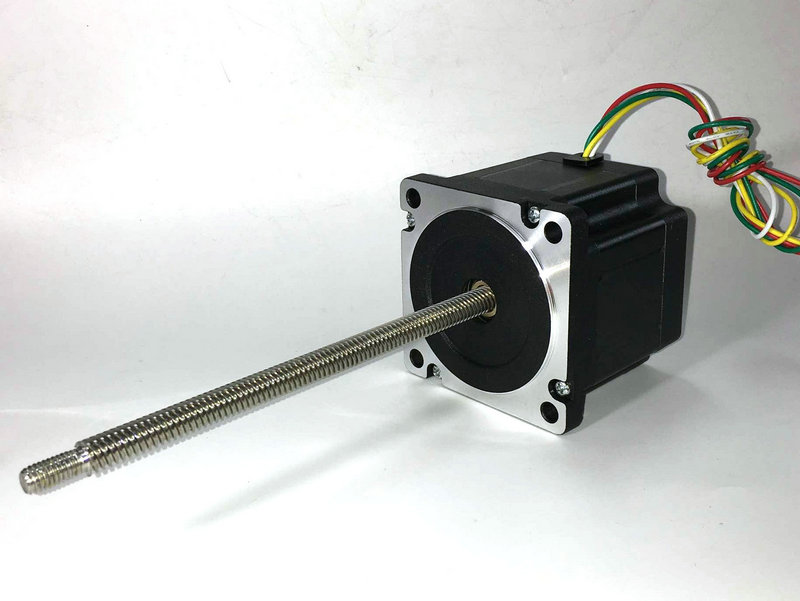

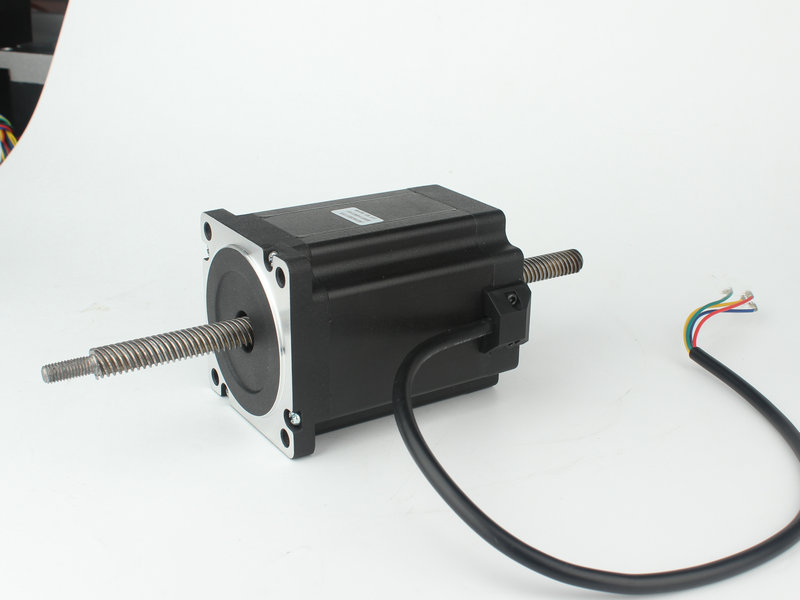

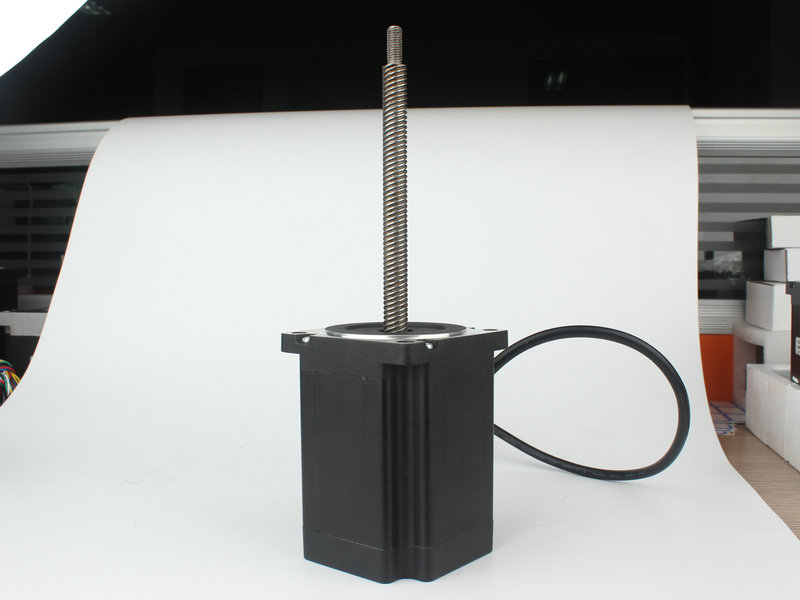

1.8° 42HS两相混合式步进电机
基本性能/General Specification:
项目(Item) | 性能(Specifications) |
步距角(Step Angle) | 1.8° |
温 升(Temperature Rise) | 80℃max |
环境温度（Ambient Temperature） | -20℃~+50℃ |
绝缘电阻(Insulation Resistance) | 100 MΩ Min. ,500VDC |
电气强度(Dielectric Strength): | 820VAC for 1s 3mA |
径向间隙(Shaft Radial Play) | 0.02Max. (450g-load) |
轴向间隙(Shaft Axial Play) | 0.08Max. (450g-load) |
最大径向压力(Max. radial force) | 220N (20mm from the flange) |
最大轴向压力(Max. axial force) | 60N |
电机规格/Electrical Specification:
型号 Model No. | 步距角 Step Angle | 长度 Motor Length | 电流 Current /Phase | 电阻 Resistance /Phase | 电感 Inductance /Phase | 静转矩 Holding Torque | 引线数 # of Leads | 定位转矩 Detent Torque | 转子惯量 Rotor Inertia | 重量 Mass |
( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm | Kg | |
JK86HS78-5504 | 1.8 | 78 | 5.5 | 0.46 | 4.0 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
JK86HS78-4208 | 1.8 | 78 | 4.2 | 0.75 | 3.4 | 3.2 | 8 | 1.2 | 1400 | 2.3 |
JK86HS97-6004 | 1.8 | 97 | 6.0 | 0.5 | 3.8 | 7.0 | 4 | 1.7 | 2100 | 3.0 |
JK86HS115-6004 | 1.8 | 115 | 6.0 | 0.5 | 5.8 | 8.7 | 4 | 2.4 | 2700 | 3.8 |
JK86HS155-6004 | 1.8 | 155 | 6.0 | 0.68 | 9.0 | 13 | 4 | 3.6 | 4000 | 5.4 |
JK86HS155-4208 | 1.8 | 155 | 4.2 | 1.25 | 8.0 | 8.5 | 8 | 3.6 | 4000 | 5.4 |
以上仅为代表产品，特殊产品可根据客户要求订制。
Above only for representative products, products of special request can be made according to the customer request.
丝杆规格/Screw rod Specification:
丝杆直径 Screw Diameter(mm) | 丝杆导程 Screw Lead(mm) | 丝杆螺距 Screw Pitch(mm) | 步长 Travel per step(mm) | 丝杆直径 Screw Diameter(mm) | 丝杆导程 Screw Lead(mm) | 丝杆螺距 Screw Pitch(mm) | 步长 Travel per step(mm) |
Tr10 | 2 | 2 | 0.01 |
Tr12
| 2 | 2 | 0.01 |
3 | 1.5 | 0.015 | 3 | 3 | 0.015 | ||
4 | 2 | 0.02 | 8 | 2 | 0.04 | ||
8 | 2 | 0.04 | 10 | 2 | 0.05 | ||
10 | 2 | 0.05 | |||||
12 | 2 | 0.06 |

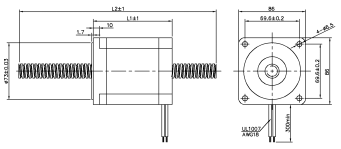

电机外型图/Dimensions:(单位/Unit=mm)
1、External Shaft motor
2、Non Captive motor
接线图/Wiring Diagram:
